Medium Capacity Steam Generator

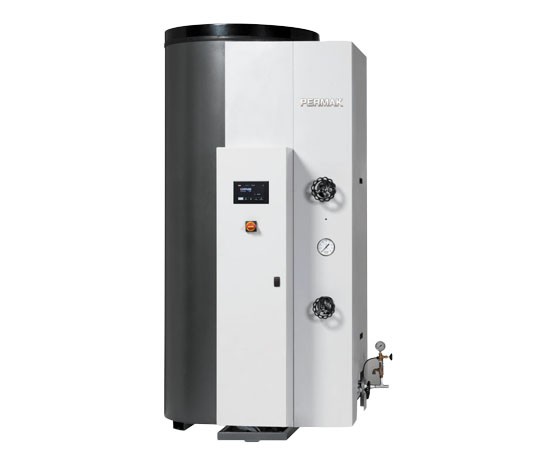

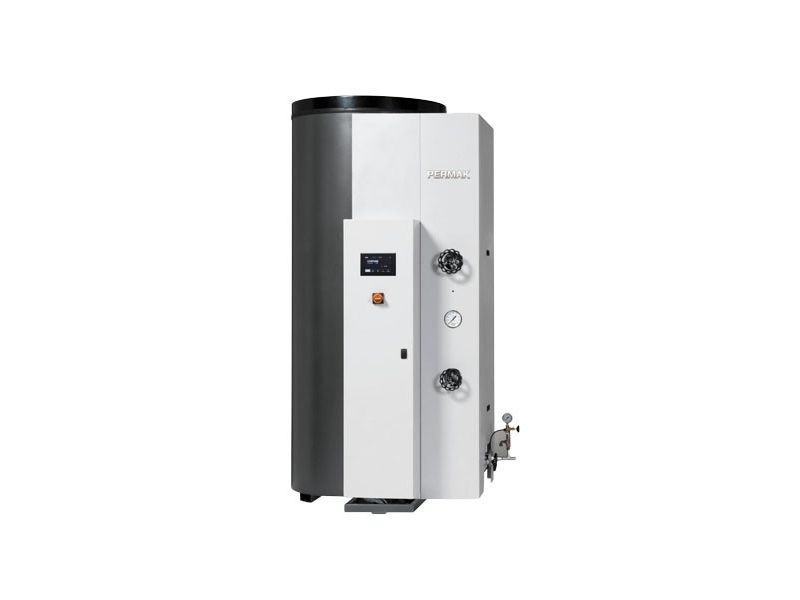

U Series Medium Capacity Steam Generator
- (97/23EC Category II-III, V(lt.)*P(bar)<1.000)
- Low Water Volume Structure with serpentine that does not cause fatal damage in case of explosion.
- Heavy-duty Robust Body Construction.
- Vertical Type Design with Spiral Serpentine allowing High Pressure operation (up to 32 bar).
- Fully Automatic Microprocess Control Module with electronic pressure and capacity control.
- Protected Front Control Panel where all command and control fixtures are gathered.
- Automatic monitoring and warning function of all kinds of external factors (water cut, chimney clogging, etc.) with Error Indication Scheme.
- High efficiency (>92.0%) Exclusive Beck Burner and Gas Path Equipment for complete combustion.
- Modulating Power Control System, which provides high savings in different capacity uses.
- Additional Operating Economy (+1.9-2.0%) provided by heating the combustion air to a temperature above 100ºC and minimizing the heat radiation to the environment with the patented double-walled Outer Air Jacket.
- Triplex Feedwater Pump suitable for high pressure operation.
- Double Serpentine Design, which provides significant time and cost advantage by only intervening in the lower coil in coil replacement requirements.
- EN, DIN, TUV Certificates. Lloyd and Breu Veritas certification facility.
- Coupling possibility with Thermotimat Automatic Start/Stop arrangement. (Weekly programmable)
- Pre-Piping CVE Package Ready Water Supply System option for ease of installation in the field.
- Permak / Certuss.
