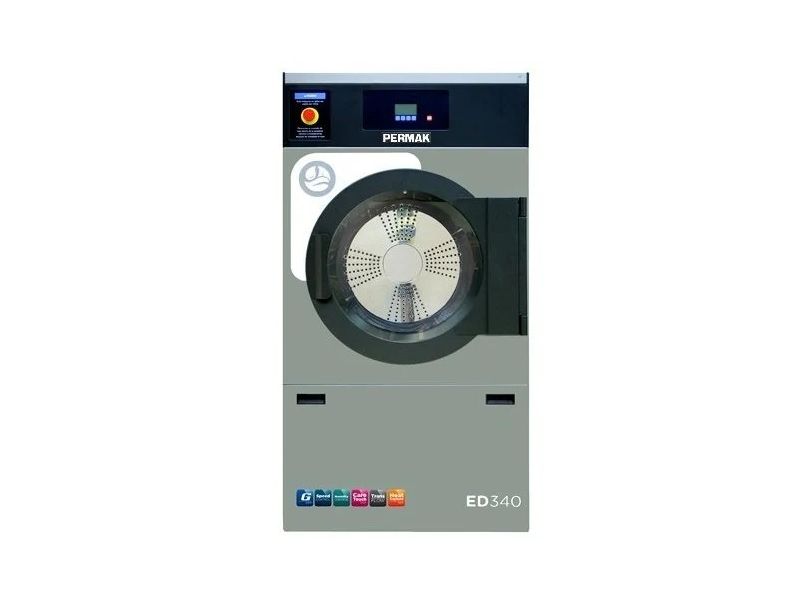

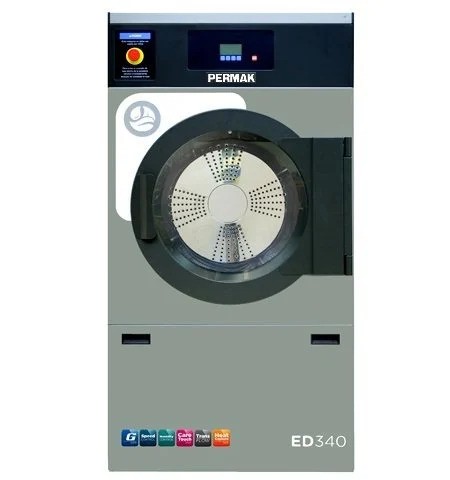

Permak ED340 Industrial Drying Machine

ED340 Industrial Drying Machine Technical Specifications

Model/ Type: Permak Model ED340

Loading Capacity: 17 kg/load. (ff:1/20, V:340 lt., ¢ 750-746 mm.)

Operation Capacity: 21-25 kg/h. (Tprocess: 40-45 min.)

Working System: Fully Automatic/ Microprocess Control.

Structure: Free-fitting.

Exhaust Fan Flow: 700 m³/h. (¢6")

Heating System: Steam, 45-50 kg/h.~Gas-21.0 kW.~Electric.-16.1 kW.

Electrical Connections: 380-400/50/3-0.9 kW./# 0.8 kWh.

Unit Weight (~): 280/ 305 kg. (net/operational.)

External Dimensions (~): 0800*1175*1555 mm.

Ergonomic Design developed for wet system textile drying and conditioning processes.
Conventional "Open Pocket" construction with free seating, front loading and unloading.
Robust Body Construction with anti-corrosive oven paint.
Microprocess Control System where program parameters can be adjusted.
"Inverter Drive" Technology providing optimum speed and rotation angle control.
Standard Heating and Cooling Cycle (cooldown) functions.
Large Loading and Unloading Hopper provided with hinged oval door design.
Easy to clean Covered Filter System positioned at the front.
Strong Exhaust Fan Block with Axial Air Flow providing high water evaporation.
Strong Rear Bearing System with solid chassis support that balances the drum shaft load.
Precision Drum made entirely of stainless steel material with reversing (right/left rotation) movement.
Drying Process suitable for Wet Clean drying process with Exhaust Humidity Control System.
